Full Height Privacy Restroom

Full Height Partitions for Restroom Privacy

Oversize toilet partitions engineered for high privacy in commercial applications while elevating modern design standards.
Request Your Spec
A restroom with a row of stalls made of high pressure laminate, headrail braced, with 3form acrylic door lites.

Privacy Challenges in Commercial Restrooms

The Problem
  • Standard public restroom partitions have 12″ floor gaps and 70″ AFF panel and door heights, compromising user privacy.
  • Generic solutions fail to deliver the premium experience sophisticated clients demand.
  • Commercial restroom designers must create restrooms that are private, appealing, and consistent with the project design goals.
White plastic laminate restroom partitions, headrail mounted with applied moldings on the doors. Tile floor, geometric wall paper.

Privacy Meets Design Excellence

Transform commercial restrooms into private spaces with full-height partitions that eliminate gaps while maintaining visual elegance. Full height partitions offer excellent privacy without compromising your design vision.

A commercial upscale restroom featuring partitions with high pressure laminate woodgrain doors and pilasters. Floor to ceiling mounted with red acrylic inlays in the doors.

  • Design Freedom

    Choose from an extensive range of materials and finishes to achieve your exact design vision, from classic to contemporary.

  • Ultimate Privacy

    Enhance commercial restroom private space by minimizing floor and ceiling gaps and extending partition component heights

  • Zero Sightline Construction

    Ironwood standard Zero Sightline eliminates gaps between doors and pilasters for discretion and aesthetic appeal.

Adaptable Configurations

Available Options For Full Height Privacy

Build your unique solution through choices in materials, door designs, mounting systems, hardware, and privacy features.

  • Black and white tiled theater bathroom with six full height wood veneer partitions featuring captured panel doors with mid rail.

    Captured Panel

    Stile and rail construction with captured panel inserts and optional midrails.

  • Public restroom with curved, custom shaped partitions made from plastic laminate with powder coated hardware and floor mounting. The ceiling is white and there is a flower on the left edge.

    Custom Shape

    Non-standard partition shapes, including curved tops, rounded corners, and artistic outlines.

  • A public restroom with wood veneer, door lite partitions with acrylic inserts and branches embedded in the insert. Headrail braced with powder coated hardware. The floor is orange tile and there is a wash basin on the left.

    Door Lite

    Stile and rail construction with acrylic or glass translucent inserts.

  • A picture of a public restroom wood veneer toilet partition with intricately engraved door and panel. There is a urinal on the left and two framed posters on the wall.

    Engraving

    Featuring custom or standard patterns cut directly into restroom partition material.

  • Public restroom with light gray patterned high pressure laminate stalls with pedestals at the bottom.

    Flat Panel

    Flat panel doors in a variety of materials, patterns, and finishes for commercial restroom partitions

  • Glamorous casino bathroom with solid surface pilasters and four plastic laminate dark, wood grain doors with vertical stainless steel insert strips.

    Inlay

    Doors featuring designs consisting of precisely fitted materials.

  • Beautiful white public restroom partitions with rectangular moldings on the doors and large, sunlit windows at the back of the picture. The partitions are made with high pressure laminate and are headrail braced.

    Molding

    Decorative molding trim applied to commercial restroom partition components.

  • A public restroom with white high pressure laminate louver doors, occupancy indicator latches, floor mounted. Windows and sinks.

    Louver

    Plantation-style doors with angled slats for aesthetic appeal and airflow in restroom partitions

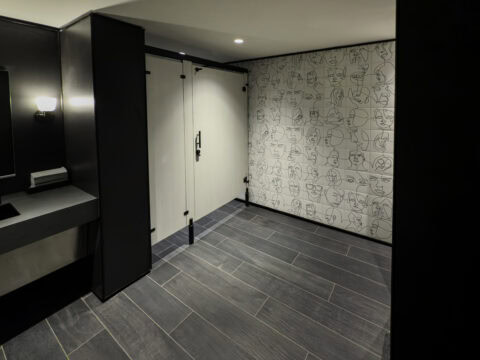

Headrail Braced

Floor mounted pilasters with overhead aluminum bracing for stability.

A modern headrail braced restroom with tiled flooring and walls, featuring three enclosed stalls and a handwashing sink with a single faucet.

Floor to Ceiling

Pilasters secured at the floor and ceiling with minimal visible hardware.

Stunning wood veneer bathroom partition and acrylic insert door with stray crossing gold lines in floor to ceiling style. Corrugated metal backsplash.
  • A stainless steel angle bracket with pre-drilled holes along its length.

    Continuous Hardware

    Continuous hardware provides stability and privacy for commercial restroom partitions.

  • Metal L-bracket with two vertical mounting holes and one horizontal hole, designed for support and attachment to surfaces.

    Standard Hardware

    Cost-effective hardware for commercial restroom partitions.

  • Two bright orange public restroom stalls with louvered doors, mounted ceiling hung.

    Transom

    Structural components installed above doors to improve privacy and stability.

  • Floor to ceiling woodgrain high pressure laminate toilet partitions with zero sightline

    Zero Sightline

    Overlapping doors and pilasters eliminate visual gaps in toilet partitions.

How to Specify Ironwood

Follow our easy three-step process to start using Full Height Privacy in your design:

The Process
Go To ConfiguratorContact Us →
  • 1

    Go to the Configurator

    Our configurator will help guide your choices of material, mounting style, door option, hardware, etc. to specify your toilet partitions.

  • 2

    Generate Your Specification

    Once you have made your selections, the configurator will generate a spec and other helpful resources for you.

  • 3

    Contact Us With Any Questions

    Call us at 360-965-6590 or email us at  specs@ironwood-mfg.com.

Frequently Asked Questions

  • What privacy features address common user concerns in shared facilities?

    Enhanced privacy features include:

    • Zero Sightline door and pilaster design
    • Full privacy hardware systems
    • Extended height doors and panels
    • Secure latching mechanisms with occupancy indicator functionality

    These elements enhance privacy in commercial restrooms.

  • How do material choices affect maximum component heights?

    Maximum heights vary by material:

    • Laminate & Wood Veneer: Up to 108″ doors
    • Compact Laminate: Up to 84″ doors
    • Solid Surface & Stone: Up to 96″ panels
    • Door weights over 100 lbs require specialized hardware

    Note that transom panels can also be added above doors to extend full height privacy if needed.

  • How do full height partitions accommodate building codes and ADA requirements?

    All full height configurations maintain required clearances while maximizing privacy. Standard ADA-compliant stall widths, depths, and door openings are preserved, with bottom clearances adjusted as required.

  • What should be considered when specifying full height partitions?

    Meeting ADA requirements requires careful planning and adherence to local and national codes. Some modifications may be needed, and while we’re here to help, consulting compliance professionals is recommended.

    Other important considerations include:

    • Ceiling height and levelness
    • Installation access and handling
    • Interior lighting requirements
    • Hardware selection for door weight
Team meeting with discussion leader and whiteboard agenda.

If you can’t find the answer you’re looking for, feel free to reach out to us directly and we’ll be happy to assist you!

Contact Us

Featured Full Height Privacy Bathroom Stalls

Gallery

Browse through examples of all full height privacy toilet partitions, highlighting their aesthetic appeal and practical benefits.

Explore Portfolio

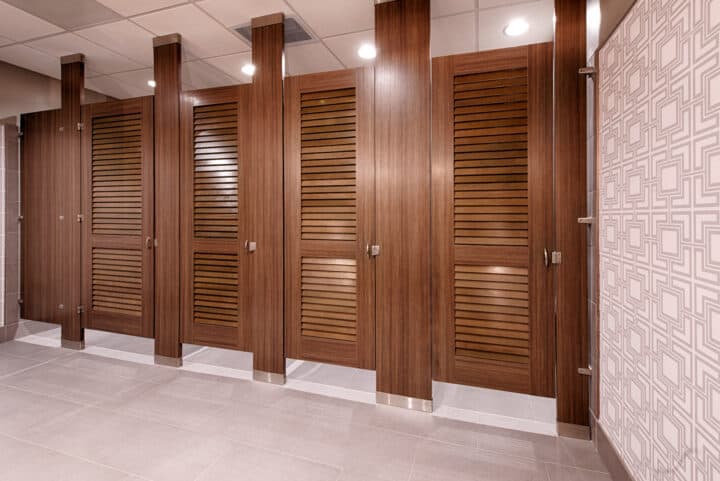

  • Oversized woodgrain laminate toilet partitions with louvered doors mounted floor to ceiling.
  • A restroom with a row of stalls made of high pressure laminate, headrail braced, with 3form acrylic door lites.

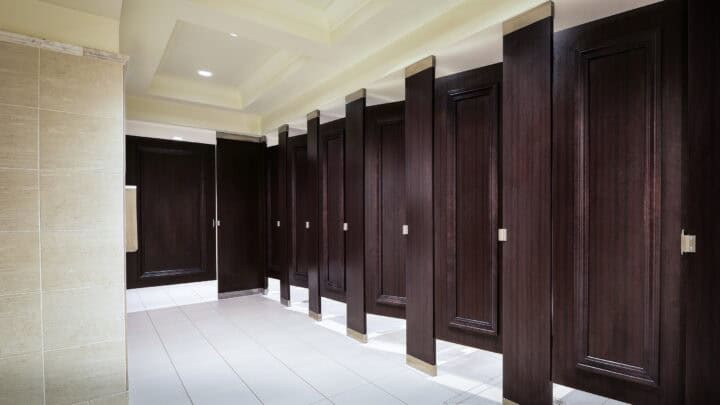

  • A commercial restroom with a row of partitions in woodgrain plastic laminate, floor to ceiling mounted, with applied moldings on the doors.
  • White plastic laminate restroom partitions, headrail mounted with applied moldings on the doors. Tile floor, geometric wall paper.
  • Luxurious restroom with louvered wood veneer stall doors mounted floor to ceiling, white sinks on a dark countertop, and purple orchids on the vanity.
  • A commercial upscale restroom featuring partitions with high pressure laminate woodgrain doors and pilasters. Floor to ceiling mounted with red acrylic inlays in the doors.
