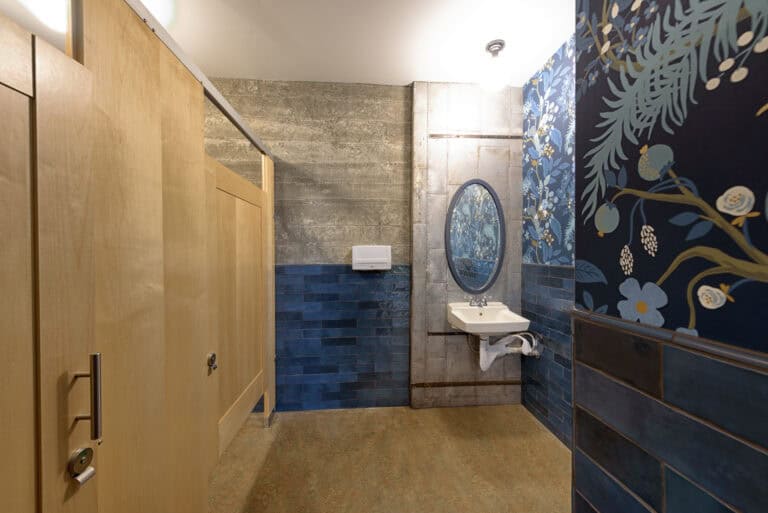

This commercial bathroom features a wooden stall door with innovative toilet partition hardware, complemented by blue tiled walls and floral wallpaper. A white sink stands beneath an oval mirror, showcasing thoughtful bathroom stall design.

This article covers some basics of commercial bathroom stall design, emphasizing material, configuration, and hardware options.

Commercial Bathroom Stall Design

Designing commercial bathroom stalls involves many objectives, including:

  • Privacy: Privacy is essential in commercial bathroom stalls.
  • Aesthetics: The stalls should match the overall design of the restroom while complementing the theme of the building.
  • Durability: Commercial bathroom stalls must be appropriately sturdy for the expected use.
  • Accessibility: Bathroom stalls must be accessible for people with disabilities and compliant with relevant codes, such as the ADA.
  • Hygiene: The design should be easy to clean and maintain.
  • Costs: The design needs to be in line with the project cost objectives.

Successfully factoring these objectives into your toilet partition design requires knowledge of the available options.

Bathroom Partition Material Considerations

MaterialSuitable ForSample ApplicationsAdvantagesRelative Price
HPL (High Pressure Laminate)Typical UseHotel, Restaurant, TheaterWide variety of colors and patterns; relatively low cost$
Compact Laminate (Phenolic)Hard UsePublic School, Gym, StoreWide variety of colors and patterns; moisture resistance; durability$$
Wood VeneerLight UseLaw Office, Nice RestaurantNatural beauty; stain to match$$$
QuartzTypical UseMuseum, Casino, ChurchNatural beauty; homogeneous throughout; moisture resistance; durability$$$$
Solid SurfaceTypical UseAirport, HotelBeauty; moisture resistance; homogeneous throughout; repair-ability$$$$
Metal / Stainless SteelTypical UseStore, TheaterLow cost; quick availability (limited color options)$ / $$
Solid Plastic (HDPE)Hard UsePublic School, Gym, StoreDurability; homogeneous throughout; quick availability (limited color options)$$

Partition Door Style Considerations

Note that panels can also be built in these styles.

Door StyleFeaturesRelative Price
Flat Panel (Slab)Clean, single plane look; lowest cost.$
LouverTrue stile and rail construction; overlapping louver slats for privacy; optional midrail$$$
MoldingStandard or custom profiles; least expensive upgrade$$
Captured PanelTrue stile and rail construction; inexpensive upgrade$$
Captured Panel with MoldingTrue stile and rail construction with panel edge molding$$$
Barn XDistinctive look; true stile and rail construction$$$$
Door Lite – Frosted AcrylicTrue stile and rail construction; translucent acrylic insert$$
Door Lite – Designer InsertTrue stile and rail construction; semi-custom acrylic or glass insert$$$ to $$$$
EngravingEngraved pattern on flat component; standard or custom design$$$
InlayInlaid material on a flat component; standard or custom design$$$
CustomCustom laminate, custom shape; custom combination of any options$$$ to $$$$$

Partition Mounting Style Considerations

Mounting StyleAdvantagesDisadvantagesRelative Price
Headrail BracedStructural stability; lowest costVisible headrail hardware (powder coating or headrail material choice can reduce this)$
Floor to CeilingStructural stability (if ceiling height is not over 10′)Requires backing in the ceiling; more pilaster material required$$
Floor MountedAesthetic appeal of aligned component topsFloor must accommodate 3″ deep holes; poor structural stability which may require extra pilasters; poor privacy$$$
Ceiling HungAesthetic appeal of aligned component bottoms; ease of cleaningCeiling allthread required, poor partition stability – may require extra pilasters$$$

Partition Height Considerations

The height of commercial restroom partitions has the greatest impact on privacy. 

Door / Panel HeightsConsiderationsRelative Price
58″Traditional height; requires at least 12″ floor gap below to give reasonable privacy at the top; least expensive$
71″Modern privacy norm; typically combined with 9″ floor gap, but smaller gaps are possible; watch for ADA requirements$$
84″High privacy; watch for ADA floor gap requirements; watch for lighting and fire suppression requirements$$$
CustomCustom height to meet design requirements; some heights (like 61″ or 73″) have poor material yield and can be surprisingly expensive$$ to $$$$

Toilet Partition Hardware

Toilet partition hardware options include materials, finishes, privacy, and functionality. The range of selection in each of these areas is limited.

Hardware Material Options

All necessary hardware thicknesses and lengths may not be available in certain materials, which may limit project-specific options.

MaterialFinishPropertiesConsiderationsRelative Price
Cast Stainless SteelBrushed Semi-Shiny (Silver)High strength*Most components are available; no full-length brackets; can powder coat$$
Stamped Stainless SteelBrushed Semi-Shiny (Silver)High strength*Most components are available, full-length available; can powder coat$
Die Cast Zinc (Zamac)Polished Bright Shiny (Silver)**Medium strength*Most components are available; no full-length; no powder coat$
AluminumClear Anodized (Gray)Medium strengthUsually paired with HDPE material; full-length available$

* “Most components are available” means wall brackets, hinge brackets, strikes, keepers, latches, hooks, stops, and door pulls are typically available in this material.

** Zamac is not suitable for large or heavy components.

Hinge Hardware

Hinge TypeConsiderationsRelative Price
Surface MountCompatible with zero sightline system; visible on outswing doors$
Vault PivotDistinctive visual style; not suitable for heavy doors; swings in or out; visible on both sides of the door$$
Full LengthSuitable for heavy doors; blocks line of sight into stall on hinge side$$
Inset PivotDistinctive visual style; not suitable for heavy doors; swings in or out; visible on both sides of door$
ConcealedInset into door and pilaster; small gaps on hinge side of door; minimal gap with no sightline into stall on hinge side$$$$
Continuous GearedSuitable for very heavy doors, such as quartz or solid surface; no self-closing feature included in the hinge$$$$

Other Door Hardware – Strikes, Keepers, Slide Latches, Pulls, Bumpers, Hooks

HardwareDetailsPrice Range
Strike and KeeperSelection is usually determined by the manufacturer based on the material and option choices for the bathroom stall partitions$
Slide LatchRange from simple sliding bars to mechanical indicator latches to electronic latch/indicator combinations$ to $$$
PullRange from basic “D” type pulls to long and sometimes pricey bar pulls$ to $$$$
BumperRange from single function to combination hook and bumper$
HookUsually simple , but there is a broad market and a wide range of possibilities$ to $$

Bracket Hardware

Bracket TypeConsiderationsRelative Price
StirrupSuitable for most partition applications; least expensive; leaves gaps between components$
Continuous (or Full Length)Suitable for larger, heavier panels and pilasters; eliminates gaps; larger visual presence$$
Angle (Hinged)Required when components do not meet in straight lines or right angles$$
