Continuous Hardware
Robust type 304 stainless steel construction offers superior corrosion resistance and durability. Continuous hardware enhances privacy and stability. Low-maintenance, institutional-grade hardware provides long-lasting performance for high-traffic commercial restrooms.
What is Continuous Hardware
Continuous stainless steel hardware is made from type 304, stainless. Type 304 stainless has good casting, shearing, and forming properties as well as having strong corrosion resistance. Components are formed, deburred, and finished with a number 4 brushed finish. This type of hardware adds privacy, is substantial, durable, and requires minimal maintenance.
What is Included in Continuous Hardware
List of Hardware
Continuous hardware includes all the hardware required for a high privacy restroom design, providing flexibility and easy installation.

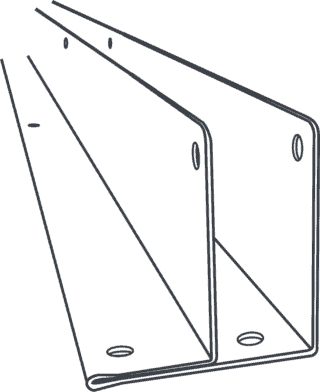

One Ear Bracket

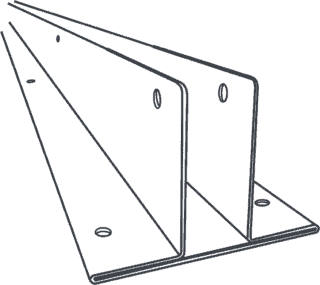

Two Ear Bracket
U Bracket

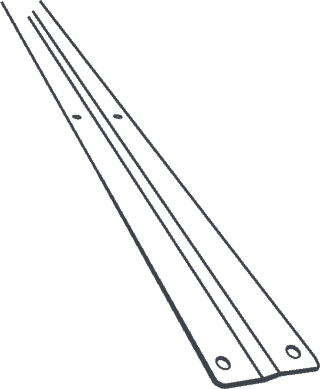

Alcove Clip
Coat Hook-Bumper
Pull
Indicator Latch-Keeper
Surface Mount Hinge
Deeper Dive & Resources
Discover detailed information about continuous hardware to make informed decisions for your commercial restroom design.
Here are some considerations for continuous hardware to determine its suitability for your commercial restroom project.
- This hardware allows for 3/8” minimum gaps
- A 71″ hinge is provided for 72″ and 84″ tall doors
- The finish is number 4 brushed
- Continuous brackets may look institutional
- Hinges are visible from the swing face of the door and hinge through bolts are visible from the non-swing face
- Review the budget before specifying
Brackets
1 ear, 2 ear, U type, and alcove clip brackets are built from 18 gauge (0.046″ thick) type 304 stainless steel with a number 4 brushed finish.
Surface Mount Hinge
The hinge is built from 14 gauge (0.075″ thick) type 304 stainless steel with a number 4 brushed finish. Hinges are available in fixed 20º and 0º rest positions and 57″ and 71″ lengths.
Bar Type Pull
The pull is built from 13 gauge (0.094″ thick) type 304 stainless steel with number 4 brushed finish. 8″ (200mm) overall length with 4″ (100mm) center to center and 2″ (50mm) tall.
Hook/Bumper
The combination hook and bumper is built from 304 stainless steel with a number 4 brushed finish. The hook includes an integrated black rubber bumper.
Latch
The occupancy indicator style latch with keeper is built from 13 gauge (0.094″ thick) type 304 stainless steel with a number 4 brushed finish.
Bracket Depth
| 1 Ear | 2 Ear | U Bracket | Alcove | |
|---|---|---|---|---|
| Depth inch | 2.5 | 2.5 | 1.5 | 2.375 |
| Depth mm | 64 | 64 | 38 | 60 |
Bracket/Hinge Heights
Brackets and hinges are available in 57″ (1448mm) and 71″ (1803mm) lengths.
Frequently Asked Questions
What finish is applied to the hardware?
All components have a number 4 brushed finish, providing a sleek and uniform appearance.
What is the main difference between continuous and standard?
Continuous hardware features longer, uninterrupted components, particularly the hinge, which runs nearly the entire door length for enhanced stability and durability.
What are the available hinge options in continuous hardware?
The continuous hinge is available in fixed 20° and 0° rest positions, and comes in 57-inch and 71-inch lengths to accommodate different door heights.
Is continuous hardware more expensive than standard hardware?
Generally, yes. It’s recommended to review your budget before specifying continuous hardware, as it tends to be more costly due to its enhanced features.
How visible are the hinges and bolts in continuous hardware?
Hinges are visible from the swing face of the door and hinge through bolts are visible from the non-swing face, similar to standard hardware.
What if I don’t want stainless steel factory finish?
Hardware and fasteners can be powder coated. Powder coat is available in bronze, black, and many other colors.
If you can’t find the answer you’re looking for, feel free to reach out to us directly and we’ll be happy to assist you!
