Zero Sightline Privacy

Design with Zero Sightline

Elevate restroom privacy with our innovative Zero Sightline partitions, eliminating gaps between doors and pilasters for discretion and aesthetic appeal.

Dark woodgrain high-pressure laminate restroom partitions in a commercial bathroom, showcasing a traditional design with enhanced durability.
Definition

What is Zero Sightline?

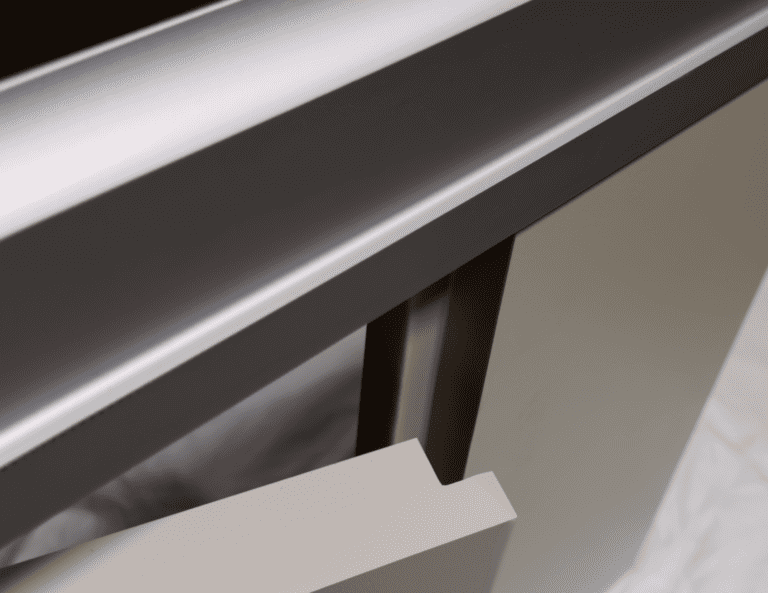

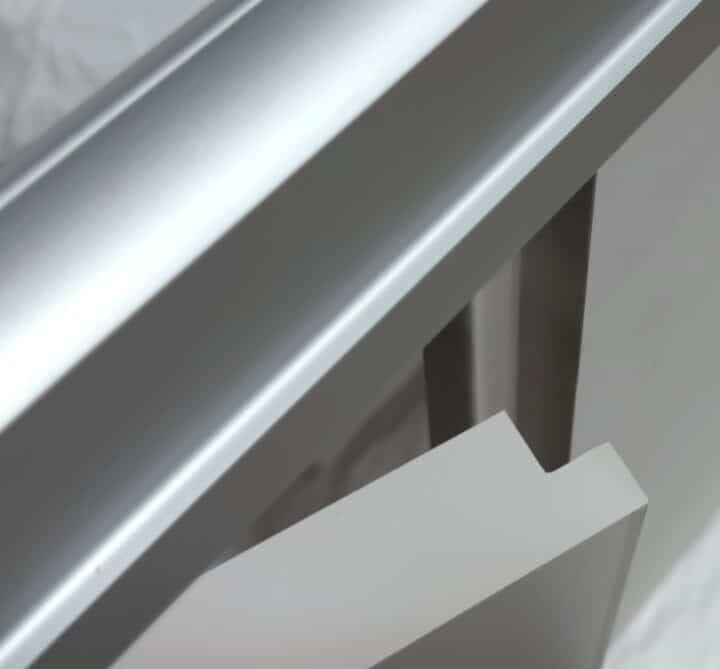

Zero Sightline features an innovative rabbeting technique that creates overlapping lap joints between doors and pilasters. This design eliminates visual gaps at connection points, ensuring privacy and a sleek, seamless appearance in commercial restrooms.

Door and pilaster engineering diagram, material dimensions vary.

Compatible Materials

Materials

Zero Sightline is available in a variety of high-quality materials, each offering unique aesthetic and functional benefits for your restroom design.

Door Styles

Compatible Door Styles

Zero Sightline can be integrated with various door styles, allowing you to customize the look and functionality of your restroom partitions.

  • Black and white tiled theater bathroom with six full height wood veneer partitions featuring captured panel doors with mid rail.

    Captured Panel

    Stile and rail construction with captured panel inserts and optional midrails.

  • Door Lite

    Stile and rail construction with acrylic or glass translucent inserts.

  • Engraving

    Featuring custom or standard patterns cut directly into restroom partition material.

  • Public restroom with light gray patterned high pressure laminate stalls with pedestals at the bottom.

    Flat Panel

    Flat panel doors in a variety of materials, patterns, and finishes for commercial restroom partitions

  • Glamorous casino bathroom with solid surface pilasters and four plastic laminate dark, wood grain doors with vertical stainless steel insert strips.

    Inlay

    Doors featuring designs consisting of precisely fitted materials.

  • A public restroom with white high pressure laminate louver doors, occupancy indicator latches, floor mounted. Windows and sinks.

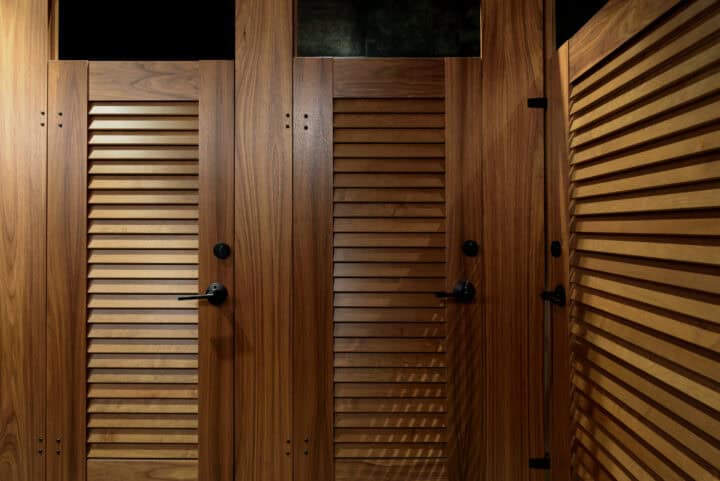

    Louver

    Plantation-style doors with angled slats for aesthetic appeal and airflow in restroom partitions

  • Molding

    Decorative molding trim applied to commercial restroom partition components.

Compatible Mounting Styles

Mounting Styles

Zero Sightline can be installed using different mounting styles, providing flexibility in design and installation to suit various restroom layouts and requirements.

Headrail Braced

Floor mounted pilasters with overhead aluminum bracing for stability.

A modern headrail braced restroom with tiled flooring and walls, featuring three enclosed stalls and a handwashing sink with a single faucet.

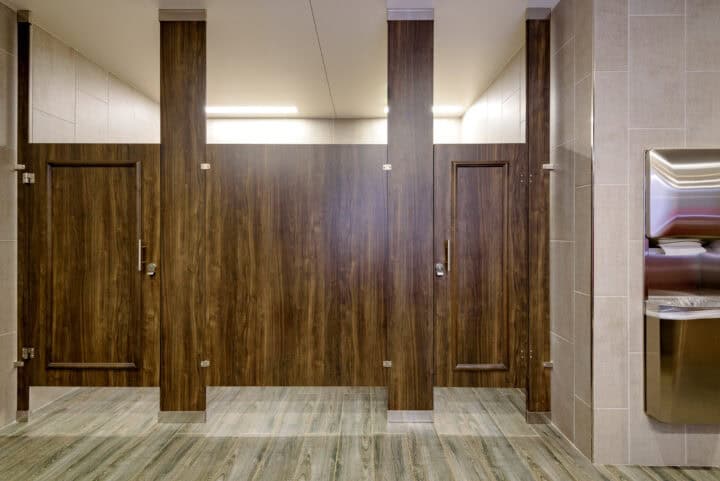

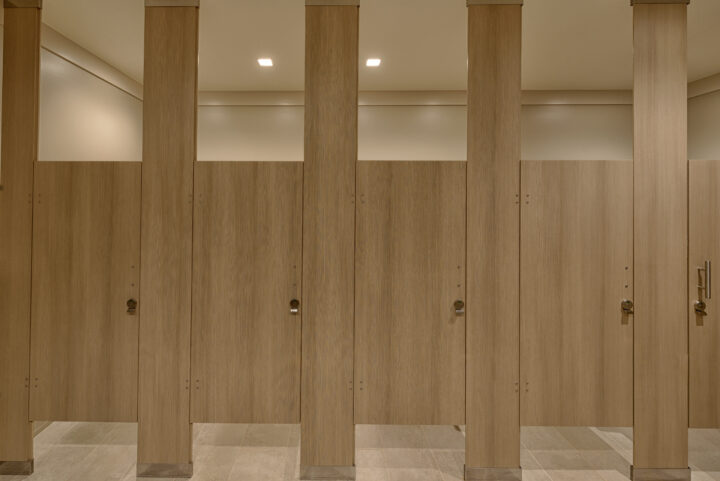

Floor to Ceiling

Pilasters secured at the floor and ceiling with minimal visible hardware.

Stunning wood veneer bathroom partition and acrylic insert door with stray crossing gold lines in floor to ceiling style. Corrugated metal backsplash.

European

Pilasters with overhead headrail and floor pedestals blend style and strength.

Commercial restroom with compact laminate partitions, applied moldings, powder coated hardware and European mounting (headrail and pedestals).

Ceiling Hung

Pilasters attached solely to the ceiling offer open floor space and a clean look.

Standard size wood grain plastic laminate bathroom partitions featuring three louver doors in ceiling hung configuration.

Floor Mount

Partition pilasters are anchored to the floor only, resulting in low-profile elegance.

Earthy, urban bathroom features honey colored wood veneer partitions with two captured panel doors in floor mount style. Brick and slate walls.

How to Specify Ironwood

Follow our easy three-step process to start using Zero Sightline in your design:

The Process
  • 1

    Go to the Configurator

    Our configurator will help guide your choices of material, mounting style, door option, hardware, etc. to specify your toilet partitions.

  • 2

    Generate Your Specification

    Once you have made your selections, the configurator will generate a spec and other helpful resources for you.

  • 3

    Contact Us With Any Questions

    Call us at 360-965-6590 or email us at  specs@ironwood-mfg.com.

Deeper Dive & Resources

Discover detailed information about Zero Sightline to make informed decisions for your commercial restroom design.

Zero Sightline impacts component design and affects various aspects of partition design:

  • Door and pilaster thickness must be similar for proper implementation.
  • Doors are wider than door openings to provide the required overlap between doors and pilasters.
  • Pilasters must be at least 3″ wide to accommodate hardware and not interfere with the Zero Sightline rabbet.

Some hardware configurations may not be compatible with Zero Sightline, including:

  • Concealed (Soss) Hinges: These hinges require flat door and pilaster edges. This is not compatible on the hinge side with the lapped Zero Sightline feature.
  • Flat Hinges and Strikes: May require jambs for compatibility. Consult with Ironwood for alternative solutions or adaptations.

Frequently Asked Questions

  • Can Zero Sightline be applied to existing partitions?

    Generally, Zero Sightline is best implemented in new installations. However, in some cases, it may be possible to retrofit existing partitions. Consult with Ironwood for specific recommendations.

  • Are there any limitations to using Zero Sightline with different materials?

    While Zero Sightline is compatible with various materials, certain considerations may apply. For example, some materials may require special edgebanding techniques or have specific thickness requirements.

  • How does Zero Sightline affect the overall cost of restroom partitions?

    Zero Sightline may increase the cost slightly due to additional fabrication requirements. However, the enhanced privacy and aesthetic appeal often justify the investment for many projects.

  • Can Zero Sightline be combined with other privacy-enhancing features?

    Yes, Zero Sightline can be combined with options like transoms, continuous brackets, etc.

  • How does Zero Sightline improve privacy in restroom partitions?

    Zero Sightline eliminates visual gaps between doors and pilasters by using overlapping lap joints, creating a seamless appearance and preventing sightlines into the stall.
