European Partitions

Design with European Mounting

European mounting style combines elegance and stability, offering modern commercial restrooms the sleek strength of headrail and pedestal support.

  • Headrail

  • Pedestal

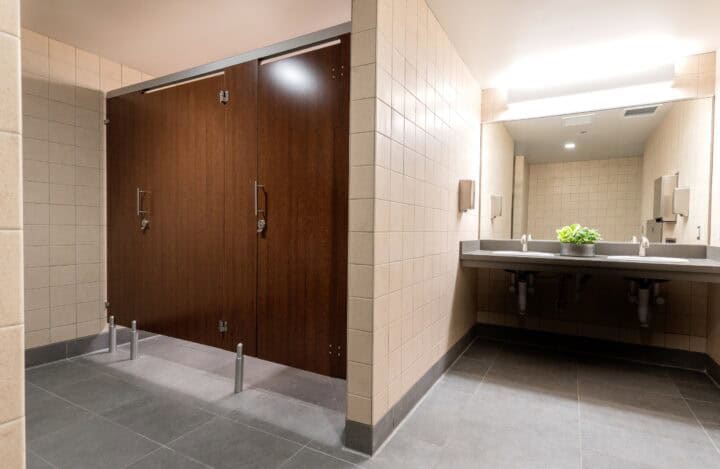

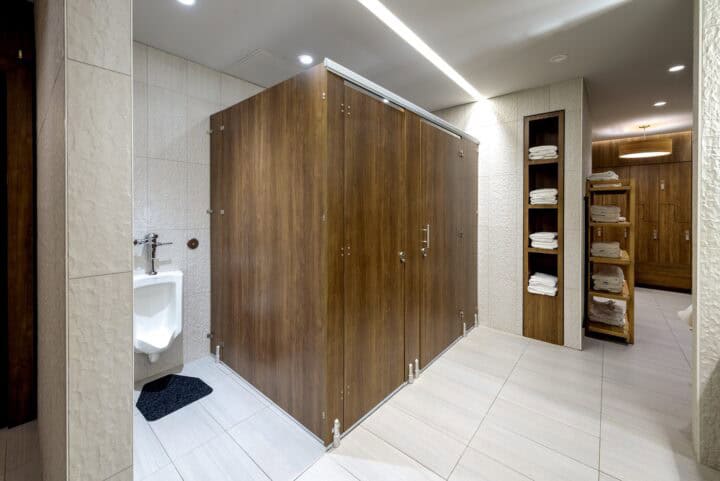

European style commercial restroom with high-privacy plastic laminate partitions, aluminum pedestals, headrail bracing, and stainless steel hardware.
Definition

What is European Mounting Style

European mounting style features pilasters secured with headrail at the top and pedestals at the bottom. This configuration provides a distinctive look while ensuring robust stability for toilet partitions. Typically, anti-grip headrail is made of extruded aluminum.The pedestals are also made of aluminum. The headrail may also be manufactured from the same material as the rest of the partition.

  • Close-up of a white, angular metal extrusion with a symmetrical, hollow interior.

    Headrail

    Stabilizes pilasters to walls

  • A metallic cylindrical object resembling a pedestal features two screw holes on the upper section.

    Pedestal

    Secure components to the floor and the ceiling.

Diagram of a restroom stall with panels labeled "headrail" at the top and "pedestal" at the floor.

Compatible Materials

Materials

Explore our collection of material options for European partitions. Each choice provides unique benefits to enhance your restroom design.

Door Styles

Compatible Door Styles

Discover the range of door styles available for European partitions. Each option offers a distinct aesthetic, allowing you to transform the look of your space with your selection.

  • Black and white tiled theater bathroom with six full height wood veneer partitions featuring captured panel doors with mid rail.

    Captured Panel

    Stile and rail construction with captured panel inserts and optional midrails.

  • A public restroom with wood veneer, door lite partitions with acrylic inserts and branches embedded in the insert. Headrail braced with powder coated hardware. The floor is orange tile and there is a wash basin on the left.

    Door Lite

    Stile and rail construction with acrylic or glass translucent inserts.

  • A picture of a public restroom wood veneer toilet partition with intricately engraved door and panel. There is a urinal on the left and two framed posters on the wall.

    Engraving

    Featuring custom or standard patterns cut directly into restroom partition material.

  • Public restroom with light gray patterned high pressure laminate stalls with pedestals at the bottom.

    Flat Panel

    Flat panel doors in a variety of materials, patterns, and finishes for commercial restroom partitions

  • Glamorous casino bathroom with solid surface pilasters and four plastic laminate dark, wood grain doors with vertical stainless steel insert strips.

    Inlay

    Doors featuring designs consisting of precisely fitted materials.

  • A public restroom with white high pressure laminate louver doors, occupancy indicator latches, floor mounted. Windows and sinks.

    Louver

    Plantation-style doors with angled slats for aesthetic appeal and airflow in restroom partitions

  • Beautiful white public restroom partitions with rectangular moldings on the doors and large, sunlit windows at the back of the picture. The partitions are made with high pressure laminate and are headrail braced.

    Molding

    Decorative molding trim applied to commercial restroom partition components.

Considerations When Using European Mounting Style

European mounting style offers numerous advantages, but certain features should be evaluated to ensure it meets your project’s requirements.

Features

How to Specify Ironwood

Follow our easy three-step process to start using European in your design:

The Process
  • 1

    Go to the Configurator

    Our configurator will help guide your choices of material, mounting style, door option, hardware, etc. to specify your toilet partitions.

  • 2

    Generate Your Specification

    Once you have made your selections, the configurator will generate a spec and other helpful resources for you.

  • 3

    Contact Us With Any Questions

    Call us at 360-965-6590 or email us at  specs@ironwood-mfg.com.

Deeper Dive & Resources

Gain a deeper understanding of European mounting by exploring resources and expert insights.

While European mounting specifically refers to the headrail and pedestal combination, European style partitions incorporate additional design elements:

  • Taller doors and panels (typically 72″ high)
  • Decreased floor gap (typically 9″)
  • Zero sightline construction for enhanced privacy
  • Slab doors for a clean, modern look (other styles like louver or door lite are also compatible)
  • Minimal visible hardware for a sleek appearance

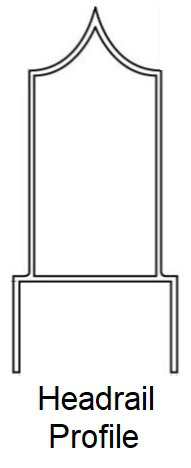

European mounting style utilizes Ironwood’s standard anti-grip aluminum headrail for top support. This profile prevents users from hanging from or otherwise grabbing the headrail, enhancing safety and cleanliness.

Drawing showing the profile of a headrail with a pointed top and straight sides. Caption reads "Headrail Profile".

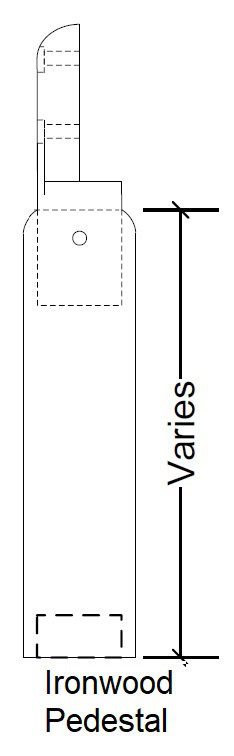

Floor pedestals are typically made from durable aluminum, providing sturdy bottom support and allowing for height adjustments to accommodate floor variations. Typical pedestal heights range from 3″ to 12″, with custom sizes available. Pedestals are adjustable from -1/2″ to +3/4″ of nominal height (except 3″ pedestals, which are adjustable -1/8″ to +3/4″).

Technical drawing of an ironwood pedestal with a note indicating variable dimensions.

Ironwood Manufacturing offers custom headrail options for designers seeking unique aesthetic solutions or specific material requirements:

Material

Custom headrail is available in plastic laminate, wood veneer, or compact laminate, providing an alternative to standard extruded aluminum headrail.

Dimensions

  • Height: Custom headrail is 3″ tall, a height which balances strength and adaptability requirements
  • Thickness: Matches the pilaster thickness for a cohesive look
  • Length: Maximum single-piece length is 105″

Connections

  • Splicing: In-line connections use two 1/4″ x 1″ dowel pins per splice
  • Tee and Wall Connections: Utilize L-brackets for secure attachment

Installation Considerations

  • A minimum 12″ gap is required between the top of the custom headrail and the ceiling for proper installation
  • Installers must seal any cut ends in the field to maintain warranty coverage

Custom headrail offers an opportunity to create a cohesive design aesthetic while maintaining the structural benefits of headrail braced partitions. Designers should consider material compatibility, installation requirements, and overall visual impact when specifying custom headrail options.

Headrail can be powder coated in a range of colors based on a specific color chart. While exact matching to partition colors is not possible, this option allows for selecting complementary accent colors. Powder coating enhances durability and offers superior resistance to chipping, scratching, and fading compared to traditional paint finishes.

Our preferred powder coat vendor is Cardinal. Colors from other vendors are available but costs and lead times will be negatively impacted. In addition, touch up paint may not be available for other vendors.

When specifying European mounting style, keep these installation factors in mind:

  • Ceiling Height: Ensure adequate clearance for headrail installation (minimum 3″ gap above pilasters for aluminum headrail, minimum 12″ between the top of the custom headrail and the ceiling)
  • Floor Conditions: Pedestals can accommodate slight floor variations, but severely uneven surfaces may require additional preparation

Frequently Asked Questions

  • Is it possible to customize the appearance of the headrail?

    Headrail customization options are available to align with specific design requirements. While the standard headrail is typically clear anodized aluminum, it can be finished in various colors to complement the partition materials. For unique design, custom headrail options may be explored in consultation with Ironwood.

  • How does European mounting style differ from other mounting options?

    European mounting style uniquely combines headrail at the top with floor pedestals at the bottom of the pilasters. This configuration offers the stability of headrail braced systems with the adjustability and clean look of ceiling hung options.

  • Can European mounting style be used with any material?

    Yes, European mounting style is compatible with all of Ironwood’s partition materials, including compact laminate, high pressure laminate (HPL), wood veneer, solid surface, and engineered stone. The choice of material does not affect the mounting style’s functionality.

  • Is European mounting style ADA compliant?

    European mounting style can be designed to meet ADA (Americans with Disabilities Act) requirements. The flexibility in dimensions allows for proper clearances and hardware placement.

  • Can existing partitions be retroffited to European mounting?

    Yes, existing partitions can be retrofitted to European mounting style, but consulting with an Ironwood specialist is recommended to determine feasibility and any necessary modifications. Some components and hardware may need to be replaced or upgraded.

  • Can European partitions be customized?

    Yes, customization is possible. Whether it is adjusting the door height, selecting different headrail profiles, or choosing alternative door styles, the European mounting style is highly adaptable.

Team discussing architectural blueprints at a table.

If you can’t find the answer you’re looking for, feel free to reach out to us directly and we’ll be happy to assist you!
