Solid Surface Partitions

Design With Solid Surface

Solid surface offers a unique look, a wide variety of patterns and finishes, good damage resistance, and excellent repairability.

  • Lead Time: 14 Weeks

  • Budget: $$$$

Request Your SpecSample Request →
A row of closed metal restroom stalls with sleek handles; a washbasin is visible on the right. The space is well-lit with natural light from a large window.
A row of solid surface urinals with shelves in a public restroom with beige partitions and walls.

Solid Surface Vendors

What Solid Surface Options are Available for Restroom Partitions?

We provide materials from multiple manufacturers and have an extensive selection of patterns and colors to select from. You may verify the availability of your color and pattern using the links below. For additional options please contact us, we are happy to assist.

Request SamplesContact Us →
A designer comparing engineered stone samples in a showroom, holding up samples to select the perfect color for a commercial design project.
Definition

What is Solid Surface?

Solid surface is a non-porous, homogeneous material made from acrylic polymer resins, pigments, and fire-retardant fillers. It offers a seamless appearance, durability, and repairability, making it ideal for high-traffic commercial restrooms.

Cross-section of a composite material with layers: Alumina Trihydrate 55-66%, Dyes/Pigments < 5%, Acrylic/Polyester Resin 35-45%, finished top and bottom.

Solid Surface Use Cases

Application

Solid surface is recommended for high-traffic areas requiring durability and ease of maintenance.

  • Airports

  • Shopping Malls

  • Educational Facilities

  • Healthcare Facilities

  • Corporate Restrooms

  • Casinos

  • Churches

  • Country Clubs

  • AND MORE

Create Your SpecSample Request →

Considerations When Using Solid Surface

Solid surface offers numerous advantages, but certain features should be evaluated to ensure it meets your project’s requirements.

Features

How to Specify Ironwood

Follow our easy three-step process to start using Solid Surface in your design:

The Process
Request SpecificationContact Us →
  • 1

    Go to the Configurator

    Our configurator will help guide your choices of material, mounting style, door option, hardware, etc. to specify your toilet partitions.

  • 2

    Generate Your Specification

    Once you have made your selections, the configurator will generate a spec and other helpful resources for you.

  • 3

    Contact Us With Any Questions

    Call us at 360-965-6590 or email us at  specs@ironwood-mfg.com.

Deeper Dive & Resources

Most manufacturers of solid surface materials have maximum sheet widths of 30″ and maximum thicknesses of 1/2″. Ironwood Manufacturing creates toilet partition components by bonding two of these 1/2″ thick sheets to form 1″ thick panels. This process creates rigid, durable components with finished surfaces on both sides. The edges are routed and finished to create a seamless appearance.

For partition components wider than 30″, a butt-joining process is used. This involves carefully aligning and bonding multiple pieces together, followed by sanding to create an imperceptible seam in solid colors. Non-solid color patterns will have a slightly perceptible seam, depending on the pattern. This butt-joining process allows for the creation of larger panels while maintaining the material’s seamless aesthetic.

Solid surface is available in various finishes. The standard finish offered by Ironwood Manufacturing is matte, which helps to conceal minor scratches and reduces the visibility of wear over time.

Maintenance of solid surface partitions is relatively straightforward:

  1. Regular cleaning with mild soap and water is sufficient for day-to-day maintenance.
  2. Avoid using abrasive cleaners or harsh chemicals, as these can damage the surface.
  3. Minor scratches can often be buffed out using fine-grit sandpaper, followed by refinishing to match the surrounding area.
  4. Professional repair may be necessary for deeper scratches or damage.

Solid surface doors are quite heavy. To minimize injury risks and product damage, Ironwood solid
surface doors always include a closer to limit the closing speed. Mounting this closer over the door
requires the presence of either headrail or a transom. It also typically requires the door to be at least
71” high so it reaches the closer, which must be mounted high enough to avoid head injuries.

Frequently Asked Questions

  • What options are available for repairing damaged solid surface partitions?

    Minor scratches can often be buffed out on-site. For more significant damage, the affected area can be cut out and seamlessly replaced by a skilled professional.

  • How does solid surface perform in terms of fire resistance?

    Solid surface materials typically have good fire resistance properties. They are often classified as Class A or B for flame spread and smoke development. However, specific ratings can vary by manufacturer, so it is important to check the specifications for the chosen product.

  • Can solid surface partitions be used in shower applications?

    Yes, solid surface is an excellent choice for shower partitions due to its non-porous nature and moisture resistance. It performs well in wet environments and is easy to clean and maintain.

  • Are there any environmental considerations when specifying solid surface partitions?

    Many solid surface products contain recycled content and can contribute to LEED credits. Some manufacturers also offer take-back programs for end-of-life recycling. It is advisable to check with specific manufacturers for their environmental certifications and initiatives.

  • Can solid surface be combined with other materials in partition design?

    Yes, solid surface can be effectively combined with other materials such as wood veneer, high pressure laminate, or compact laminate for unique design aesthetics. Ironwood Manufacturing can provide guidance on integrating multiple materials in partition designs.

  • How does the color consistency of solid surface compare to natural materials?

    Solid surface offers excellent color consistency compared to natural materials. While there may be slight variations between production batches, these are typically minimal and can be managed through proper planning and ordering.

  • Should any patterns or finishes be avoided in solid surface?

    Yes, there are patterns and finishes which do not perform well in restrooms. Designs should avoid dark patterns, as these tend to haze and fog in restroom usage. High gloss finishes also do poorly in the restroom setting.

Team meeting, person raising hand for question.

If you can’t find the answer you’re looking for, feel free to reach out to us directly and we’ll be happy to assist you!

Contact Us

Featured Solid Surface Stalls

Gallery

Browse through examples of solid surface bathroom stalls, highlighting their aesthetic appeal and practical benefits.

Explore Portfolio

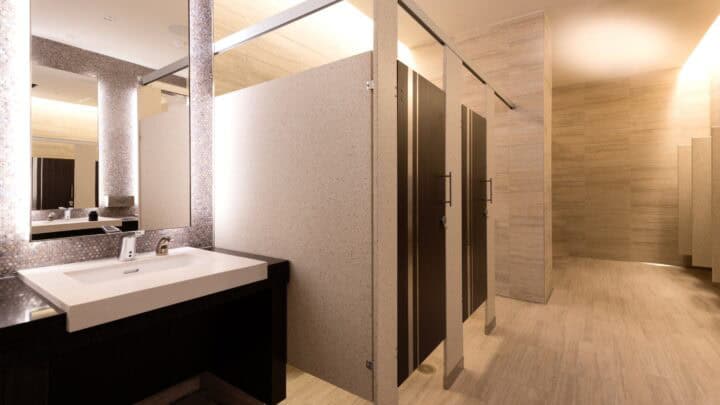

  • Modern public restroom with solid surface panels and woodgrain doors with metal inlays. The tiled walls are beige and there is a white sink with a large mirror on the left.
  • Solid surface high-privacy European bathroom stalls with headrail bracing, pedestals, and full length door pools in a commercial restroom.

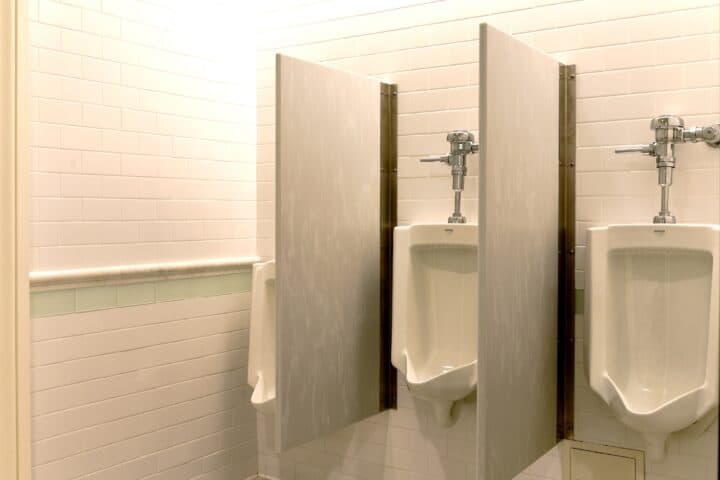

  • Two white solid surface urinal screens with continuous wall brackets.
