Captured Panel Partitions

Design with Captured Panel Doors

Elevate your restroom aesthetics with captured panel doors, offering timeless, mission-style appeal for your commercial restroom space.

Four captured panel floor mount commercial restroom partitions in woodgrain compact laminate with indicator latches and pulls.
Definition

What are Captured Panel Doors?

Captured panel doors feature inserts secured within a stile and rail frame, creating a distinctive, layered look. This construction method allows for diverse material combinations, resulting in doors that are visually striking and structurally sound.

Diagram showing exploded views and dimensions of a door section, including stile, captured panel, dowel, and rail. Measurements vary by specification and material.

Compatible Materials

Materials

Captured panel doors are available in various high-quality materials, each offering unique benefits for different commercial restroom environments.

Compatible Mounting Styles

Mounting Styles

Captured panel doors can be integrated with multiple mounting styles, providing flexibility in design and installation for diverse commercial restroom layouts.

Headrail Braced

Floor mounted pilasters with overhead aluminum bracing for stability.

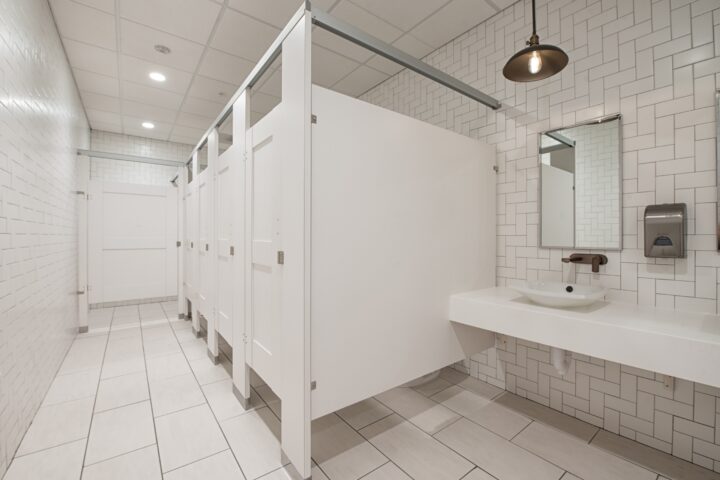

A modern headrail braced restroom with tiled flooring and walls, featuring three enclosed stalls and a handwashing sink with a single faucet.

Floor to Ceiling

Pilasters secured at the floor and ceiling with minimal visible hardware.

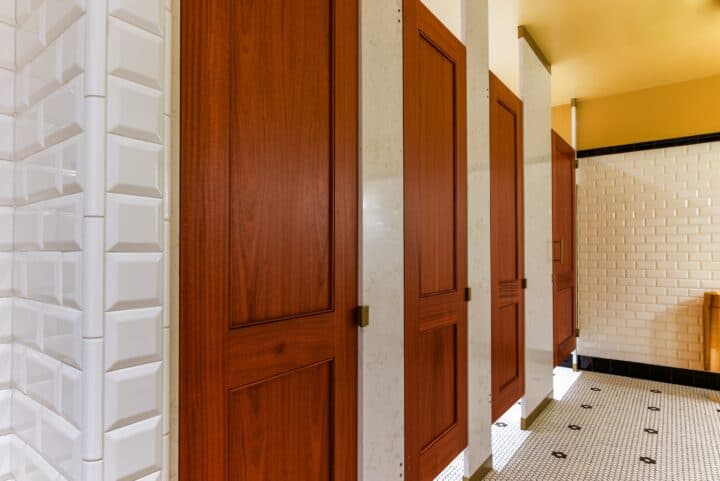

Stunning wood veneer bathroom partition and acrylic insert door with stray crossing gold lines in floor to ceiling style. Corrugated metal backsplash.

European

Pilasters with overhead headrail and floor pedestals blend style and strength.

Commercial restroom with compact laminate partitions, applied moldings, powder coated hardware and European mounting (headrail and pedestals).

Ceiling Hung

Pilasters attached solely to the ceiling offer open floor space and a clean look.

Standard size wood grain plastic laminate bathroom partitions featuring three louver doors in ceiling hung configuration.

Floor Mount

Partition pilasters are anchored to the floor only, resulting in low-profile elegance.

Earthy, urban bathroom features honey colored wood veneer partitions with two captured panel doors in floor mount style. Brick and slate walls.

Considerations When Using Captured Panel Doors

Explore the key features and considerations of captured panel doors to determine their suitability for your commercial restroom project.

Features

How to Specify Ironwood

Follow our easy three-step process to start using Captured Panel in your design:

The Process
  • 1

    Go to the Configurator

    Our configurator will help guide your choices of material, mounting style, door option, hardware, etc. to specify your toilet partitions.

  • 2

    Generate Your Specification

    Once you have made your selections, the configurator will generate a spec and other helpful resources for you.

  • 3

    Contact Us With Any Questions

    Call us at 360-965-6590 or email us at  specs@ironwood-mfg.com.

Deeper Dive & Resources

Discover detailed information about captured panel doors to make informed decisions for your commercial restroom design.

Captured panel doors utilize stile and rail construction, with inserts typically made of the same material as the frame. The insert is secured within a mortise machined into the stiles and rails.

Inserts can weigh up to 40 lbs.

Compact laminate inserts can be up to 1/2″ thick. Plastic laminate or wood veneer inserts can be up to 5/8″ thick. Thinner inserts are also available – consult with Ironwood Manufacturing about your specific needs.

When designing with captured panel doors, keep in mind:

  • Combining dissimilar materials may require special consideration due to varying expansion and contraction rates
  • Consult with Ironwood Manufacturing experts before specifying unusual material combinations to ensure compatibility and longevity
  • Opaque acrylic or glass inserts are discussed on the door lite page

Captured Panel doors offer numerous design possibilities:

  • Multiple inserts within a single door (with one or more midrails)
  • Insert patterns which differ from the frame pattern
  • Combination with moldings for a more decorative look
  • “Barn X” design option for a rustic appeal
  • Beadboard inserts for a classic, textured appearance

Frequently Asked Questions

  • Are high pressure laminate or wood veneer captured panel doors suitable for high-traffic restrooms?

    While captured panel doors offer unique aesthetic appeal, high pressure laminate and wood veneer captured panel doors may not be ideal for extremely high-traffic areas. For such environments, consider compact laminate captured panel doors, which offer increased durability (and moisture resistance).

  • How do captured panel doors compare to standard partition doors in terms of cost?

    Captured panel doors have a higher cost than flat panel doors due to their unique construction and materials. However, captured panel doors offer superior aesthetics and provide long-term value for distinctive commercial restroom designs.

    Note that captured panel doors have a lower cost then louvered, door lite, or applied molding doors. This makes captured panel doors and attractive value engineering option when a design calls for something more than the flat panel door style.

  • Can I use different materials for the insert and the frame?

    Yes, you can use different materials for the insert and frame. However, it’s important to consider the expansion and contraction rates of the chosen materials. Consult with Ironwood Manufacturing for guidance on compatible combinations.

  • Are captured panel doors suitable for high-moisture environments?

    Only captured panel doors made with compact laminate (inserts and frames) are appropriate for wet areas. Other materials may not withstand high-moisture environments as effectively.

  • Can I incorporate custom designs or patterns into the captured panel insert?

    Absolutely! Captured panel doors offer great flexibility for custom designs. You can use materials like engraved or patterned laminates or custom wood veneers to create unique looks.
